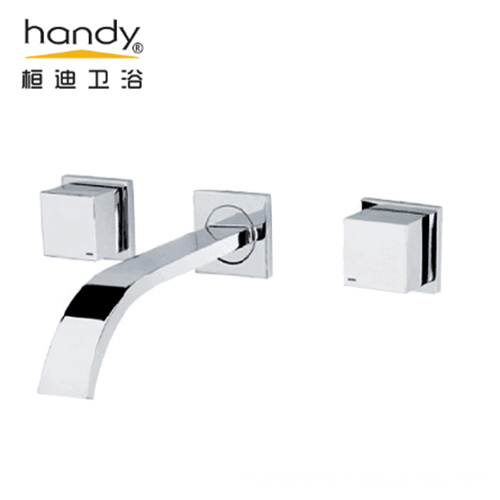

In Wall Three Holes Concealed Faucets
|Payment Type:||T/T,Paypal,Western Union|
|Terms of Trade:||FOB,CIF,EXW|
|Min. Order:||200 Set/Sets|
|Delivery Time:||30 Days|
|Packaging:||STANDARD EXPORT PACKAGE|
|Place of Origin:||Guangdong China|
Model No.: HN-4A77
The installation method of wall-mounted Concealed Basin Mixer is as follows:
1. Please turn on the water source before installation, remove impurities, sand, etc.
in the piping, and then turn off the zd water source. The main purpose is to prevent
the installation of the basin mixer. If there are impurities in the water pipe that cannot supply
water normally, it is quite troublesome to rework the installation. Special
2. Lock the flange cover into the teeth of the water inlet elbow, and then wrap the teeth
with the relief tape, lock it into the wall pipe, adjust the cold and hot water inlet elbow,
rotate the angle to be flush and the hole distance is the same as the body The hot and
cold water inlet holes are the same distance, and then the flange cover is rotated and
pressed against the wall surface, mainly for the purpose of fixing.
3. Connect the rubber gasket to the cold and hot water inlet of the main body in the nut,
and then connect and lock with the cold and hot water inlet elbow. Please use a 30mm wrench.
High quality basin mixer with brass body concealed wall in basin brass faucet.
With three holes indenpent hot and cold switch.Wall mounted Chrome basin faucet,
push button square type long stretch single flat spout.water can be flowed from a distance
down upon the basin.Work with counter basin of publics and families.High quality popular
concealed basin mixer with easy installation box.Ceramic cartridge with 500,000 life cycles.
Name: Push down Basin faucet
Model No.: HN-4A77
Material: H59 Brass main body
Cartridge: Durable Ceramic cartridge, guarantee 10 years no water leak
Surface finished: Chrome
The thickness of electro plating: 8 to 12 micron
Salt spray testing for 2 kinds of electro plating as follows:
a) General plating: 24 hours / Acid; 120 hours / neutral
b) Acid plating: 48 hours /Acid; 240 hours / neutral
Guarantee time: 10 year
MOQ: 200 pieces
Packaging: Standard export package or Customized
Payment by: T/T, Western Union
Delivery: Shenzhen CHINA, 30 days after payment
Fields of applications:Bathtub faucet, commercial faucet, home faucet, household faucet, industrial faucet etc.
1) The working pressure of the products is 0.05MPa-0.9MPa
2) The temperature is no more than 85° when supply hot water.
3) Don't use vapor when supply hot water.
4) The working temperature is more than 0°
5) The distance between valve's center and faucet should be 4 inch, the center distance of two valve inlet should be 8 inch.
1) Please clean the inside of plumbing, like mud or sandy etc before install this Bathroom Basin Taps.
2) This product is passed function test, please don`t dismantle the self closing valve core, you can be sure to use it.
Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment
Q: Can you send a sample to us firstly?
A: yes, we can. Sample is ready in 3 to 5 days.
SHENZHEN KING OF SUN INDUSTRY CO.,LTD
Shenzhen King Of Sun Industry Co.,Ltd. It is a professional enterprise specializing in producing and marketing of faucets, flush valve, bathroom accessories ect. Head office located at Luohu District, Shenzhen, Guangdong, China, nearby Hong Kong. Factory is in Heshan city, Guangdong, China. With experience workers and 15 years manufacturing experience in this line. Our products are well-known by their quality and reasonable price, main export to Southeast Asia, Russia, Mid-east, South Africa and South America regions.
We have passed ISO 9001:2008. All faucets are made of #59 brass, chrome plated, High quality ceramic cartridge, Quality can guarantee 5 years no leakage.
We adopt gravity casting equipment to assure the density and uniformity thick of pipe. CNC processing equipment to assure the product`s Processing precision and using life. Advanced environmental protection electro-plated technology to prevent its second pollution, supply you more pure water and brightness is new even if it was used a long time. Our design combined with European advanced concept design, Fully consider for consumers, Focus on the use of consumers feeling.
"Handy" products will continue to create novel and applied items that will lead the market to all customers in the world.
